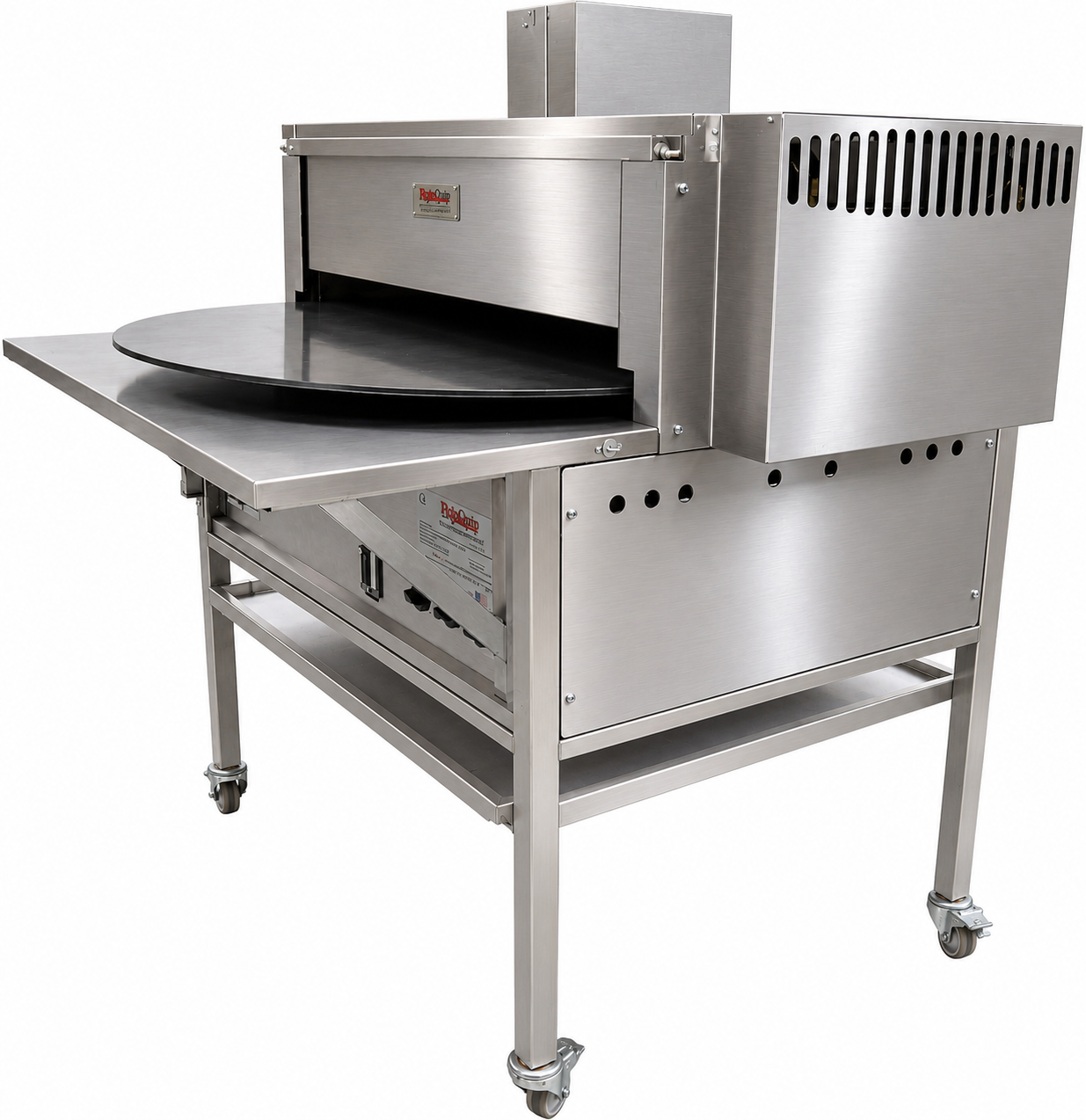

RD-50 Automatic Rotating Gas Tandoori Roti/Nan oven 600 pcs/Hr

Some changes and improvements are as follows,

• Complete stainless steel construction for easy cleaning
• High temperature and hardened glass burner guard for clear view
• Large stainless steel bezelled temperature gauge for easy operation
• Collapsable legs to fit through the tightest kitchen space
• Large ball bearing castors with brake for easy manoeuvrability
• Removable drivetrain to carry out maintenance and repairs away from the machine
• (Optional extra) digital speed controller
• (Optional extra) non stick and rust free ceramic coated cooking disc

The RD-50 is capable of producing up to 600 pieces of roti / naan an hour. Made for busy bakeries and restaurants, Rd-50 is ideal for producing large batches in commercial or industrial establishment. 1.2m meter round disc can accommodate up to 20 pieces of bread simultaneously. The desired end result is achieved using six individual gas controls and an electric motor speed control. An advanced replacement to standard tandoori clay oven, RD-50 is 50% more efficient on gas whilst being able to produce 110% more end product. Unlike standard clay oven, RD-50 takes skill work out of the equation and can be easily used by any member of kitchen staff. Our products are relied upon by thousands of clients to achieve high quality and consistent results worldwide, no matter the recipe.

Small footprint with high output makes RD-50 an invaluable equipment for any commercial space. Capable of baking Tandoori roti, naan, stuffed nan bread, tortilla, Pitta bread, paratha, samosa pastry, Shami bread, aish baladi, balkan bread, pide bread, etli ekmek, ramazan pidesi, yufka, bazlama, samoon, naan-e-afghani and much more

5-7 minutes start-up time compared to 45 minutes in a standard clay oven. Once ready, simply place flat bread on the non stick disc which rotates the product in to the cooking chamber and exists back to the front where it can simply be taken off and served. Desired results can consistently be achieved with adjustable gas and speed controls. Colour and texture can be achieved for all types of bread.

Product Features And Specifications

• Model – RD-50
• Capacity – 600 pcs / hr
• 90W Variable motor with controller
• 5 minutes start-up time
• 5 x Gas efficient infrared burners with individual control
• 2 x gas efficient Jet burner underneath disc
• Auto igniting burners with safety and pilot
• Complete stainless steel construction
• High temperature and hardened glass burner guard for clear view
• Temperature gauge
• 4 x legs with castors
• Removable drivetrain for easy maintenance
• 8mm Thick Carbon steel disc with optional ceramic coating
• Quality standard CE approved parts
• 45KW / 153546 BTU
• Input power 240V / 110V single phase
• Input gas – NG 20mbar / LPG 37mbar
• Pipe entry – 3/4” BSP
• W – 200 Kg
• W – 230 Kg
• Product Dimensions – 170W x 145D x 130H cm
• Door opening required – 120cm
• 1 year back to base parts & labour warranty
• Mains gas hose not included

VARIATIONS

GAS TYPE

NG / L.P.G
